When building a multi-agent systems, it might be necessary to launch hundred
of agents. Until now, that implied in MadKit launching hundred of threads, which
is extremely resource-consuming. Thus it was not possible to define artificial-like
simulations, hybrid systems, etc with the standard Agent class.
In the previous versions we offered a small simulation toolkit, the so-called
ReactiveLib, which was a set of classes in the madkit.lib.reactive
package. In this library, a standard MadKit agent was encapsulating a small
simulation engine. There was numerous design flaws with this library: simulated
entities were not MadKit agents (thus having no access to the messaging or agent/group/role
API), the visualization mechanisms were hard-coded, the agents homogeneous,
etc..
Thus, we wrote from scratch a new engine to permit development of agents that
are not associated with a thread, and can be scheduled by an external entity
and easily monitored from the outside.
We will take the example of small ants that walk randomly on the ground.
In this very simple simulation, we will only have one type of agent: the
ant. We'll start be defining the agent class
import madkit.kernel.AbstractAgent;
import madkit.kernel.ReferenceableAgent;
public class SmallAnt extends AbstractAgent implements ReferenceableAgent
{
public double x = 0;
public double y = 0;
public void activate()
{
joinGroup("mysimu");
requestRole("mysimu", "ant");
}
public void walk()
{
x=x+(Math.random()-0.5);
y=y+(Math.random()-0.5);
}
}
|
Minimalist, isn't it ? Things to note in this code is that we inherit from
AbstractAgent, and we won't have an associated thread, and the Ant implements
(quite easy: there's nothing to do) the
ReferenceableAgent interface.
In contrast with "regular" MadKit agents, we don't have to implements a "
live()
method. We just defined our own
walk() code.
The scheduler and activator
We now have to decide how our small ant will be run. To this end, we're
going to implement our own Scheduler and Activator
The activator is the basic bloc of synchronous execution in MadKit. In
our example, execution is really simple: we just have to execute the walk()
method on our ants
import madkit.kernel.Activator;
public class AntActivator extends Activator
{
public AntActivator(String group, String role)
{
super(group, role);
}
public void execute()
{
for (int i=0; i < agents.length; i++)
((SmallAnt)agents[i]).walk();
}
}
|
Our implementation is really simple. We refine the mandatory
execute()
method to implements our own scheduling mechanism: at each step, we invoke
the
walk() method. The
agents array is something that
the
Activator class provides us: it holds references to the agents
appertaining to the given group and role,
only
if they implement the ReferenceableAgent interface.
That's something the
MadKit kernel built for us. Note that we have
to cast to
SmallAnt as the element type is
ReferenceableAgent.
In this example, we suppose that the number of ants remain constant.
If not, we would have to call update() on the activator.
We will do two things in one agent to keep the code small: launching the
ants, and scheduling them. That is not an obligation, and big simulation
system will probably an agent specialized in the configuration of launch
of a simulation, and distinct from the scheduler.
import madkit.kernel.Scheduler;
public MySchedulerAgent extends Scheduler
{
public void activate()
{
foundGroup("mysimu");
requestRole("mysimu","scheduler");
for (int i = 0; i < 100; i++)
launchAgent(new SmallAnt(),"An ant", false);
}
public void live()
{
AntActivator a1 = new AntActivator("mysimu","ant");
addActivator(a1);
update();
while(true)
{
pause(100);
a1.execute();
}
}
}
|
We launched our agent for the simulation in the
activate() method.
Note that although we used the
launchAgent(...), the kernel will
not actually "run" the agents by itself as they need to be scheduled. Also,
we precised in this call that we don't want MadKit to try to instantiate a
hypothetical graphical interface for each of these agents (but that's possible
anyway, especially if we want something to control the behavior of these agents).
The live() method is the real thing: we build an instance of our
tool class AntActivator and add it to the collection of activators
managed by our scheduler. Note that the activators are configured with the
group/role mechanism. Then, we call the scheduler update() method
which makes the activator gets their agent list according to their configured
group and role.
The final part is executing our ants again and again. That's the final
while loop were we execute the activator.
Our example is now complete and runs well, but there is a small inconvenience:
we can't see anything !
To solve this problem, we could have added some instruction in the ant
to trace its behavior, or access it from the scheduler. However, that is
not really extensible and hard-coding an observation mechanism could be
annoying (what if we want a graphical representation ? and then dump everything
in a DBMS ? and then .. ? and everything at the same time ? etc, etc)

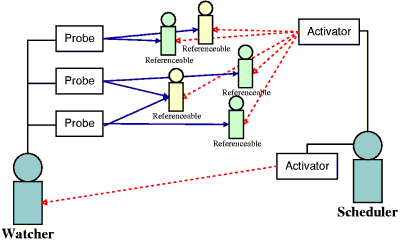

The synchronous engine in MadKit introduces a way to observe the system
from the outside. It is very similar to the scheduler/activator mechanism.
We would like to have a very simple observer: something that gives us
the most extreme points that the ants have reached for each turn.
In this example, we will not build our own probe, although that is something
quite easy to do, but just use a generic probe that ship with MadKit in
the madkit.lib.simulation
package, the NumericProbe,
which already implements some basic operations on numeric attributes.
import madkit.lib.simulation.NumericProbe;
import madkit.kernel.Watcher;
public class AntObserver extends Watcher
{
NumericProbe p1;
NumericProbe p2;
public AntObserver()
{
p1=new NumericProbe("x", "mysimu", "ant");
p2=new NumericProbe("y", "mysimu", "ant");
addProbe(p1);
addProbe(p2);
}
public void activate()
{
joinGroup("mysimu");
requestRole("mysimu","observer");
update();
}
public void observeAnts()
{
println("Max x and y reached this turn:");
println(p1.getMax()+" , "+p2.getMax());
}
}
|
We just define two numeric probes on the
x
and
y properties of our ants. The
NumericProbe
extends a special probe of the simulation library package that has the ability
to explore through reflection the class of the probed object, so we don't
have anything to do to our own code. Also note that we design the ants only
by their group and role, thus we could even have different implementation
classes, as long as they have a
x or
y property.
Important
In this version of the synchronous engine, the properties that can
be discovered by the reflexive probes are only public fields on the
agents. A future version will support accessors functions (with the
getXXX() pattern).
The only thing left is to run the observer. To this end, we will modify
the code in our scheduler to execute the observer in addition to the ants.
We won't build another Activator, but just reuse an activator which come
with MadKit, the SingleMethodActivator.
This activator takes as argument a method name, a group and a role and
execute the method that has the given name through reflection. We could
have used this one for the ants but we wanted to show how to build an
activator.
Our scheduler agent become:
import madkit.kernel.Scheduler;
import madkit.lib.simulation.SingleMethodActivator;
public class MySchedulerAgent extends Scheduler
{
public void activate()
{
foundGroup("mysimu");
requestRole("mysimu","scheduler");
for (int i = 0; i < 100; i++)
launchAgent(new SmallAnt(),"An ant", false);
launchAgent(new AntObserver(),"My observer", true); // a GUI for this one
}
public void live()
{
AntActivator a1 = new AntActivator("mysimu","ant");
SingleMethodActivator a2 = new SingleMethodActivator("observeAnts","mysimu","observer");
addActivator(a1);
addActivator(a2);
update();
while(true)
{
pause(100);
a1.execute();
a2.execute();
}
}
}
|
You just have to start the MySchedulerAgent, it will launch the
ants and the observer. You can do this in G-Box mode or with the console
booter, as we don't use graphical interfaces for our agents.
For instance, here is a short simulation run in console mode
$ java madkit.platform.console.Booter --config test_tutorial.scm
Booting MadKit Kernel ...
<Daemon> : MadKit/Aalaadin - by O. Gutknecht and J. Ferber (c) 1997-1999
<Daemon> : version: 1.4
<Daemon> : --------------------
<Daemon> : Please file bug reports on http://www.lirmm.fr/madkit/
<Daemon> : MadKit Agent microKernel is up and running
<Daemon> : (My observer) Max x and y reached this turn:
<Daemon> : (My observer) 0.4915111386577862 , 0.49222698315252467
<Daemon> : (My observer) Max x and y reached this turn:
<Daemon> : (My observer) 0.873452806885152 , 0.9354369551234195
<Daemon> : (My observer) Max x and y reached this turn:
<Daemon> : (My observer) 1.2531099361392506 , 1.1749691286640953
<Daemon> : (My observer) Max x and y reached this turn:
...
|
This simplistic example does not really show the genericity of the Synchronous
Engine. Things are getting really interesting when you have multiple observers
show differing point of views on a system, or different groups being scheduled
independently, with many agents executed according to their roles, etc..
The bees example in the
demo source code shows something more elaborated, while being close to the
ant example. For something more complex, see the "TurtleKit"
(a StarLogo-like) simulation packs and the corresponding examples.
A final word: the synchronous engine is definitively not restricted to
simulations: actually, most of the "classic" agents could be scheduled in
synchronous mode by just inheriting from AbstractAgent instead
of Agent and having an activator configured on their live()
method.
